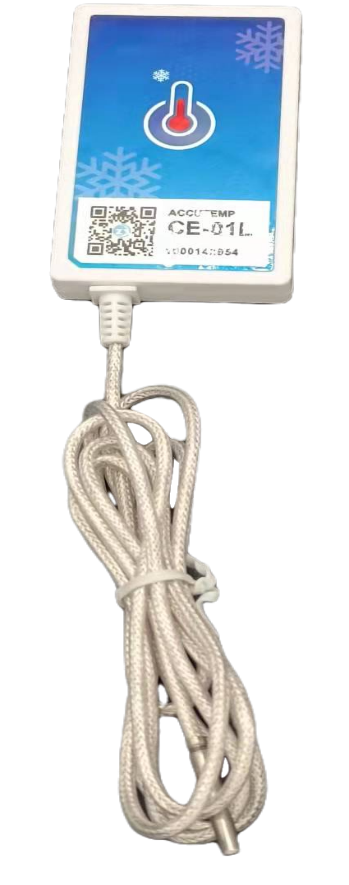

The Smartcores CE-01L Dry Ice data logger is specifically designed for monitoring vaccines and pharmaceuticals in storage and transportation environments. The logger powered by the lowest power wireless SoC chipset and equipped with high accuracy, wide range sensor. It communicates with Smartcores CG-01 Gateway and/or the Smartcores mobile app and send data to Smartcores and/or customer specified cloud platform.
The CE-01L Dry Ice data logger has a built-in 1m external probe (up to 300m optional) that can measure temperatures as low as -88°C and up to 150°C with a high degree of accuracy.
The CE-01L Dry Ice data logger also features a 1M bytes internal memory, it can store 81920 total measures. And 32768 measure logs for precooling phase prior to the official shipment happens.
Key Advantages:
CE-01L Data Logger Specifications:
| Type | Multi-use |
| Sensor | External Temperature Probe |
| Range | -88~150℃ |
| Working Temperature | -40~85℃ |
| Accuracy | 0~40℃：±0.1℃ -40~75℃：±0.3℃ -80~75℃：±1℃ -88~150℃：±1.5℃ |
| Resolution | 0.01℃ |
| NIST Calibration | 3-point NIST traceable calibration |
| Cable Length | 1m standard, up to 300m optional |
| Probe Dimensions | Food-grade stainless steel probe with blunt tip |
| logging rate | 1s to 24hours configurable |
| Memory Capacity | 81920 + 32768 readings |
| Radio power | 1 mW (0dBm), 4dBm optional |
| Time Accuracy | ±1 minute per month at 25℃ |
| Battery Life | 4 years, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the app, LED flashing alarms impact battery life. |
| Shelf Life | 12 months |
| Dimension | 10.5mm H X 38mm W X 62mm L |
| Battery | CR2450 |
| Weight | Approx. 65g |
| Protection Class | IP55 |
| Certifications | DO160G, SRRC, UN38.3, RoHS (CE, EN12830 on going) |
